⚠ 01 // SYSTEM TOPOLOGY // ENTERING HOT PATH

THE STACK, WITHOUT THE MARKETING LAYER

Architecture summaries use verified Real Labs technologies and production behavior. Public code artifacts are included only where actual source or terminal evidence is available and safe to expose.

SYS-01PRODUCTION

RealVideoCreator

Django · Python · PostgreSQL · FFmpeg · Celery · Redis · WebSockets

Full-stack video creation and editing platform spanning creator workflows, subscription logic, backend APIs, asynchronous exports, media orchestration, production monitoring, and deployment operations.

Creator UI→Django/API→Queue→FFmpeg→Export

PIPELINE BREAKDOWN

Interactive request/response work is separated from long-running media operations. Creator and project state stay in the application layer; export work is queued; progress reporting is decoupled from the media worker path.

Persistent creator/project state in Django/PostgreSQL.
Asynchronous media/export work through Celery/Redis.
FFmpeg-based processing and export orchestration.
Progress/status reporting separated from the export worker path.
Structured production logging for root-cause diagnosis.

PERFORMANCE CASE: 72ms → 4.82ms

A measured encoding path was instrumented and profiled, then restructured around the actual hot path. The measured path dropped from roughly 72ms to 4.82ms, a reduction of about 93%.

BEFORE 72ms AFTER 4.82ms

ENCODE PATH

Request state is separated from export execution. Media work is planned, queued, executed, measured, and reported without blocking the interactive creator path.

QUEUE CONTROL

Celery and Redis isolate long-running jobs from HTTP requests so worker pressure and user interaction can be diagnosed independently.

BILLING / WEBHOOKS

Subscription and entitlement logic lives at the application boundary. External billing events are handled as state transitions rather than UI assumptions.

FAILURE PROPAGATION

Worker failures need a path back to the application. Structured logs, persisted job state, and progress reporting keep export errors visible.

HOT PATH NOTE HTTP → project state → queue → worker → FFmpeg → artifact → progress

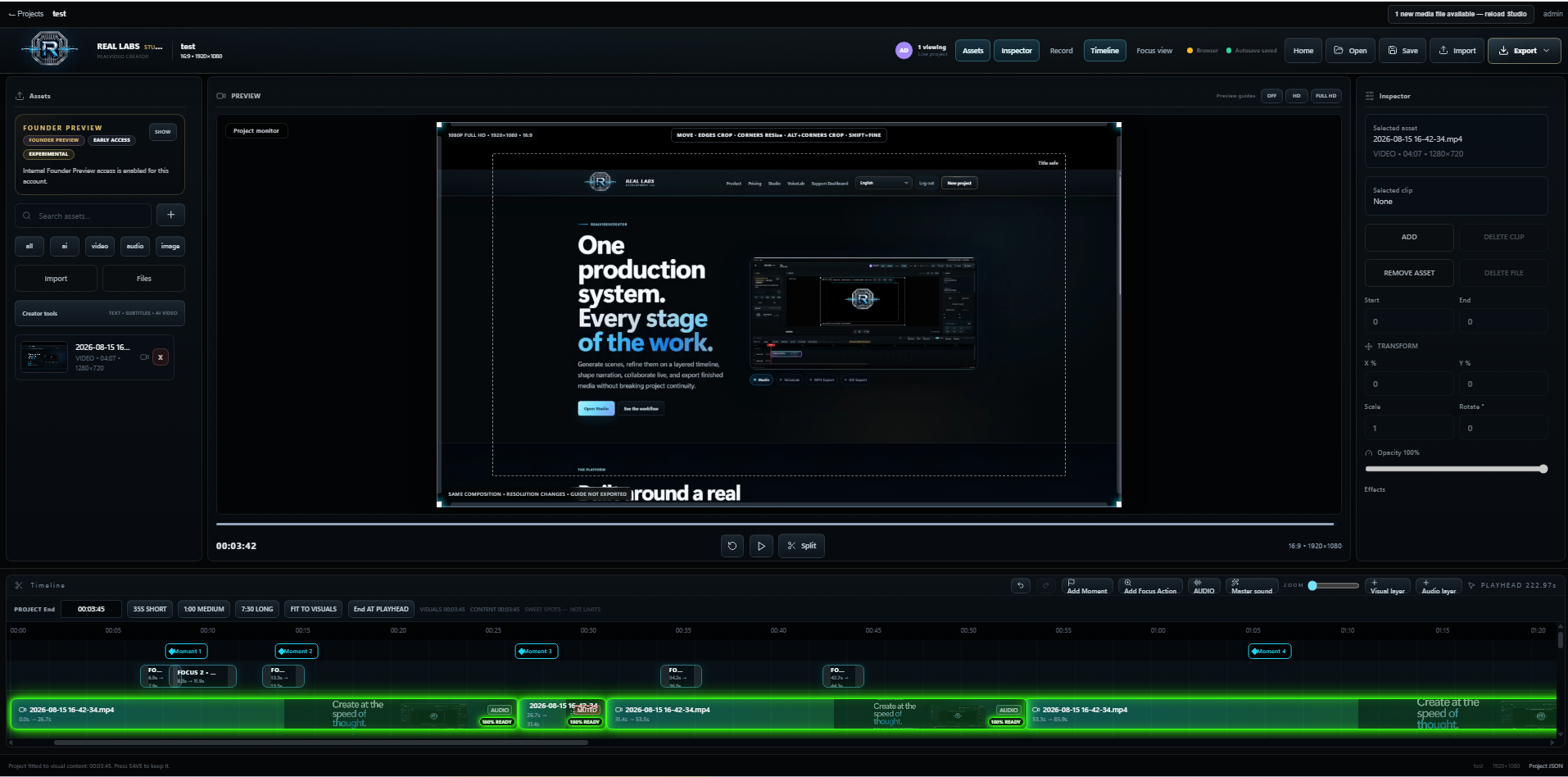

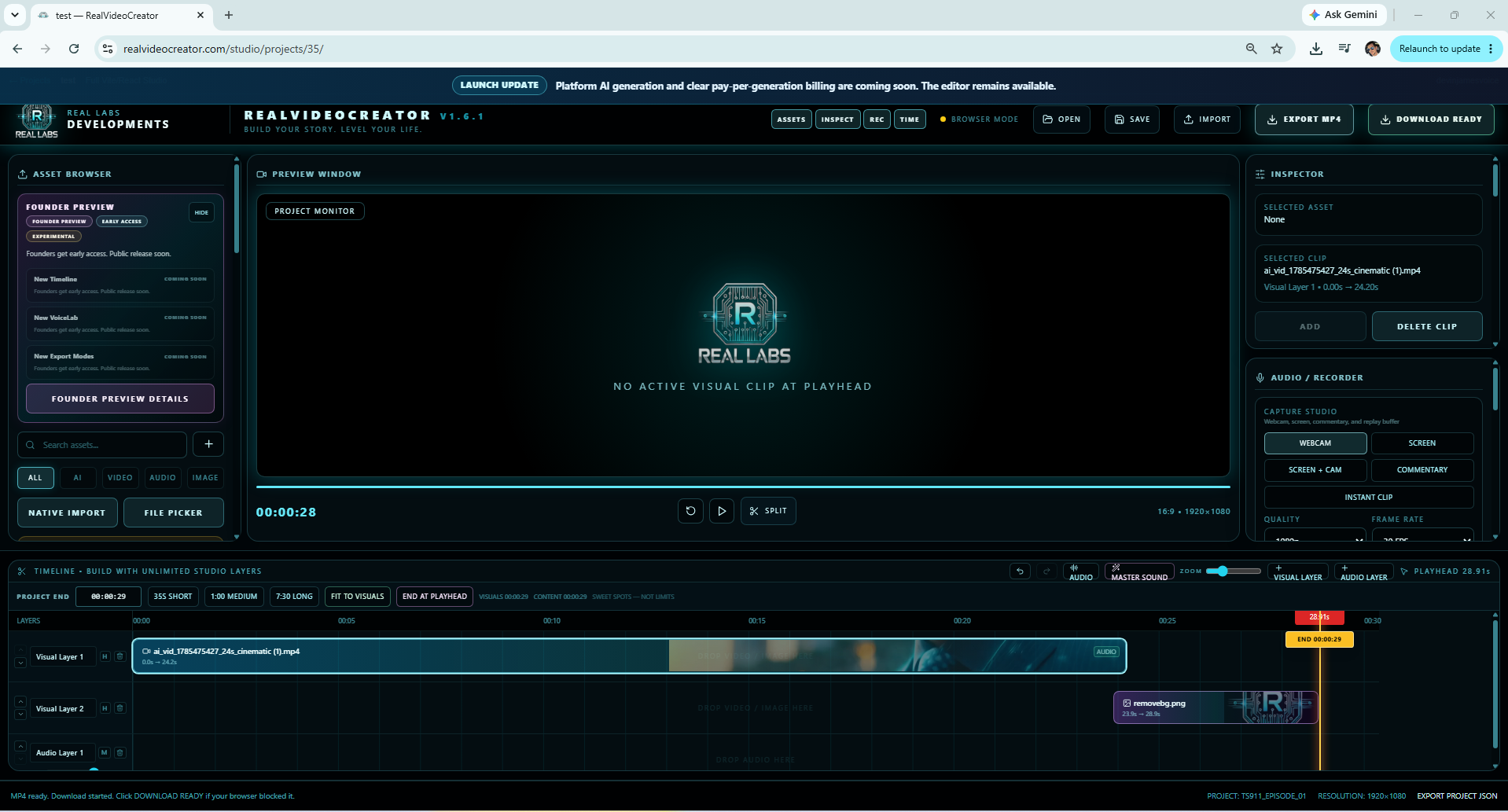

FIELD EVIDENCEStudio UI Export path Incident history

DOSSIER A1

REALVIDEOCREATOR PIPELINE BREAKDOWN

Full-stack creator platform spanning asynchronous media exports, billing state, internal business communications, database-backed workflows, and production delivery.

FULL-STACK VIDEO SYSTEM

01 // REQUEST TO EXPORT

Interactive state stays separate from media execution.

Creator actions modify application state. Long-running export work moves to the worker path. That keeps media execution from blocking normal HTTP requests and gives each failure domain a separate place to debug.

CREATOR UI→DJANGO→POSTGRESQL→CELERY→FFMPEG→EXPORT

02 // ENCODING HOT PATH

72ms became 4.82ms after the expensive path was measured instead of guessed.

The optimization story is not “made it faster.” The path was instrumented, the expensive stage was isolated, and the execution flow was restructured around the actual bottleneck. The measured result was roughly a 93 percent reduction.

BEFORE72.00 ms

AFTER4.82 ms

VISUAL // MEASURED ENCODING PATH

Latency comparison. Exact values only.

LATENCY (ms)

72.00

BEFORE

4.82

AFTER

≈93.3% reduction in the measured path

03 // WORKER AND PROGRESS PATH

Queue state and user-visible progress are different problems.

Worker execution is isolated from presentation. Progress must be reported without coupling the browser to the lifetime of one request, so async job state and real-time progress reporting remain independent of the export process itself.

request accepted
project state persisted
export queued
worker acquired job
media pipeline started
progress emitted
artifact completed
final state persisted

04 // BILLING BOUNDARY

Entitlements are application state, not a button state.

Subscription, billing, and webhook events belong at the backend boundary. The UI can present entitlement state, but external billing events must be reconciled against persistent application state.

05 // STAFF MAIL BUSINESS SYSTEM

Internal communications became a full application subsystem.

Staff Mail combines Django, PostgreSQL, SMTP and IMAP integration with per-mailbox recipient memory, private contact lookup, To/Cc/Bcc autocomplete, usage and recency ranking, secure inline-image composition, and authenticated message rendering.

Clipboard images can move from compose to CID/MIME delivery with image type checks, magic-byte validation, count and size enforcement, secure retrieval, and plain-text fallback. The mail transport layer remained isolated while the application features were expanded above it.

COMPOSE→CONTACT MEMORY→CID / MIME→SMTP / IMAP→STAFF MAIL

contact-memory tests      4 PASS
inline-image tests        3 PASS
existing regression tests 10 PASS
django system check       PASS
migration consistency     PASS
total automated tests     17 PASS

WHY THIS MATTERS

This architecture proves a creator-facing product can keep user interaction, persistent state, billing logic, background media work, and export failures separated enough to operate and debug under real production pressure.

RELATED INCIDENTS →

SYS-02REAL-TIME

LUNA Engine

Rust · Direct3D 11 · WASAPI · Media Foundation · GPU Compositing · A/V Sync

Native real-time media runtime for compositing, capture, overlays, audio, encoding, resource lifecycle management, and runtime health.

CAPTUREframes + audio

↓

CLOCKtiming authority

↓

COMPOSITORD3D11 GPU layers

↓

ENCODERpaced output

TIMING MODEL

LUNA’s timing work centers on a shared timing model instead of allowing capture, render, audio, and encode stages to drift independently. The documented timing work holds A/V drift below 1ms across the covered capture paths.

GPU / RESOURCE LIFECYCLE

Real-time GPU systems fail when ownership, reuse, synchronization, and teardown are ambiguous. Resource lifecycle is treated as part of correctness, not cleanup after correctness.

GPU COMPOSITOR

D3D11 resources are treated as owned runtime objects with explicit lifecycle, reuse, synchronization, and teardown behavior.

CLOCK AUTHORITY

Capture, audio, render, and encode timing are forced to agree with one timing model instead of accumulating independent drift.

SYNC TARGET

The documented runtime work holds A/V drift below 1ms across the covered LUNA capture paths.

ENCODER PATH

Measured hot-path work reduced one encoding path from about 72ms to 4.82ms by profiling first and restructuring only the expensive path.

RUNTIME RULE clock != frame != audio != encoder, until the timing model makes them agree

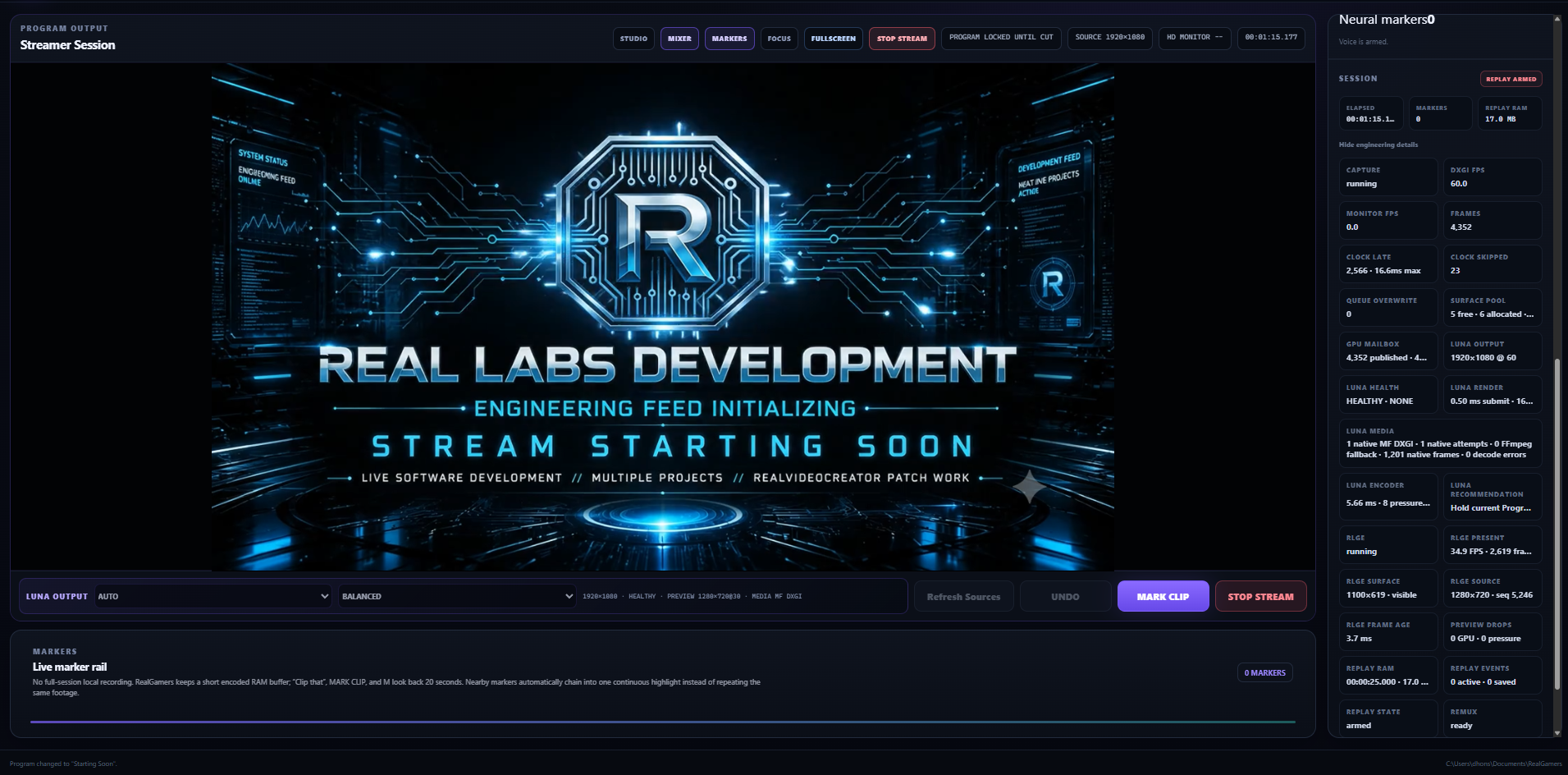

FIELD EVIDENCEProgram Output Runtime telemetry GPU incidents

DOSSIER B4

LUNA ENGINE TECHNICAL BREAKDOWN

Rust-based real-time media runtime built around native Media Foundation capture, GPU compositing, explicit timing authority, resource lifecycle control, and documented sub-millisecond A/V sync.

CROWN JEWEL // REAL-TIME RUNTIME

01CAPTUREframes + audio

→

02CLOCKtiming authority

→

03D3D11GPU composite

→

04ENCODERpaced output

↺

05HEALTHruntime state

01 // TIMING MODEL REBUILD

Independent clocks are how real-time pipelines slowly tear themselves apart.

Capture, audio, rendering, and encoding cannot each invent their own idea of “now.” LUNA’s timing work rebuilt the clock model so the pipeline reasons from a shared timing authority and corrects drift before it becomes visible or audible.

02 // SUB-MILLISECOND A/V SYNC

The target is not “looks synchronized.” The target is measurable drift.

0 ms< 1 ms documented drift target10 ms

VISUAL // SYNC ENVELOPE

Documented synchronization threshold, not a fabricated sampled trace.

0ms1ms5ms10ms

<1ms DOCUMENTED DRIFT ENVELOPE Threshold visualization only. No synthetic time-series samples.

03 // GPU COMPOSITOR

Resource lifetime is part of correctness.

D3D11 surfaces, textures, overlays, and compositor state cannot rely on accidental lifetime. Ownership, reuse, synchronization, and teardown are explicit because a real-time GPU path is unforgiving when resources survive too long, disappear too early, or are reused while still in flight.

CAPTURE SURFACE→GPU RESOURCE→LAYER BLEND→OUTPUT FRAME

04 // RUNTIME HEALTH

A real-time engine needs to know when it is unhealthy before the user does.

Runtime health belongs beside timing and resource state. The important signals are not just crashes. Drift, stalled capture, bad resource transitions, missed frames, and encoder pressure are all early indicators.

05 // NATIVE WEBCAM ENGINE

The webcam path now has measured camera-to-GPU timing instead of a blind decode boundary.

Webcam capture moved from the FFmpeg-only ingestion boundary to a native Windows Media Foundation path while preserving the already-healthy LUNA LocalMailbox and RLGE GPU transport. Media Foundation callback timestamps now expose acquisition timing before the frame reaches the GPU path.

CAMERA→MEDIA FOUNDATION→NV12→LOCALMAILBOX→D3D11→RLGE

successful measured run    898.96 sec
samples received           19,440
GPU published              19,440
publication integrity      100.000%
unread replaced            0
stale dropped              0

callback -> GPU avg        1.404 ms
callback -> GPU p95        2.348 ms
camera -> GPU avg          27.270 ms
camera -> GPU p95          38.119 ms

The application handoff is keeping up with every received sample and the previous permanent GPU starvation condition is gone. The remaining measured limitation is upstream acquisition cadence. The current source averages approximately 21.63 FPS instead of the selected 30 FPS-class target, so that investigation remains open.

LUNA TELEMETRY

LANGUAGE: Rust
GPU: Direct3D 11
AUDIO: WASAPI
SYNC: < 1ms documented
TESTS: Rust + audio suite
ENCODE: 72ms → 4.82ms path
WEBCAM: Media Foundation / NV12
MF TO GPU: 1.404 ms avg callback path
MF PUBLISH: 19,440 / 19,440

CLOCK.QPC      [LOCKED]
AUDIO.DRIFT    [<1ms]
GPU.RESOURCE   [OWNED]
ENCODER.PATH   [4.82ms]
HEALTH.MONITOR [ACTIVE]
WEBCAM.MF      [ACTIVE]
MF.GPU.PUBLISH [19440/19440]

WHY THIS MATTERS

LUNA demonstrates systems-level control over timing, GPU resources, audio, capture, and encoding. The work is measurable at the latency and drift level, not just visible in a UI.

SEE FAILURE EVIDENCE →

SYS-03CROSS-DEVICE MEDIA

Real Gamers

Rust · Direct3D 11 · WASAPI · Android MediaProjection · H.264 · FFmpeg

Cross-device media and streaming system spanning Windows-native capture, Android gameplay capture, hardware H.264 encoding, GPU-backed ingest, audio, synchronization, rendering, and live production.

Desktop / Android Capture

Hardware H.264

FFmpeg Decode

D3D11 GPU Path

LUNA / Stream Output

STABILITY UNDER LIVE LOAD

The hard problem is not “can a frame be captured?” It is keeping capture, rendering, audio, and output pacing coherent while the system remains responsive during live production.

CAPTURE

Windows-native capture and Android MediaProjection feeds enter controlled media paths where capture cadence, decode cadence, and presentation timing remain explicit.

RENDER

D3D11 rendering, surface ownership, and frame lifetime are kept explicit so live production does not depend on accidental GPU state.

AUDIO

WASAPI audio capture and mixing must remain synchronized with video output even when capture and render timing fluctuate.

JITTER

Frame pacing and buffering are part of stability. A fast pipeline that presents erratically is still a broken streaming pipeline.

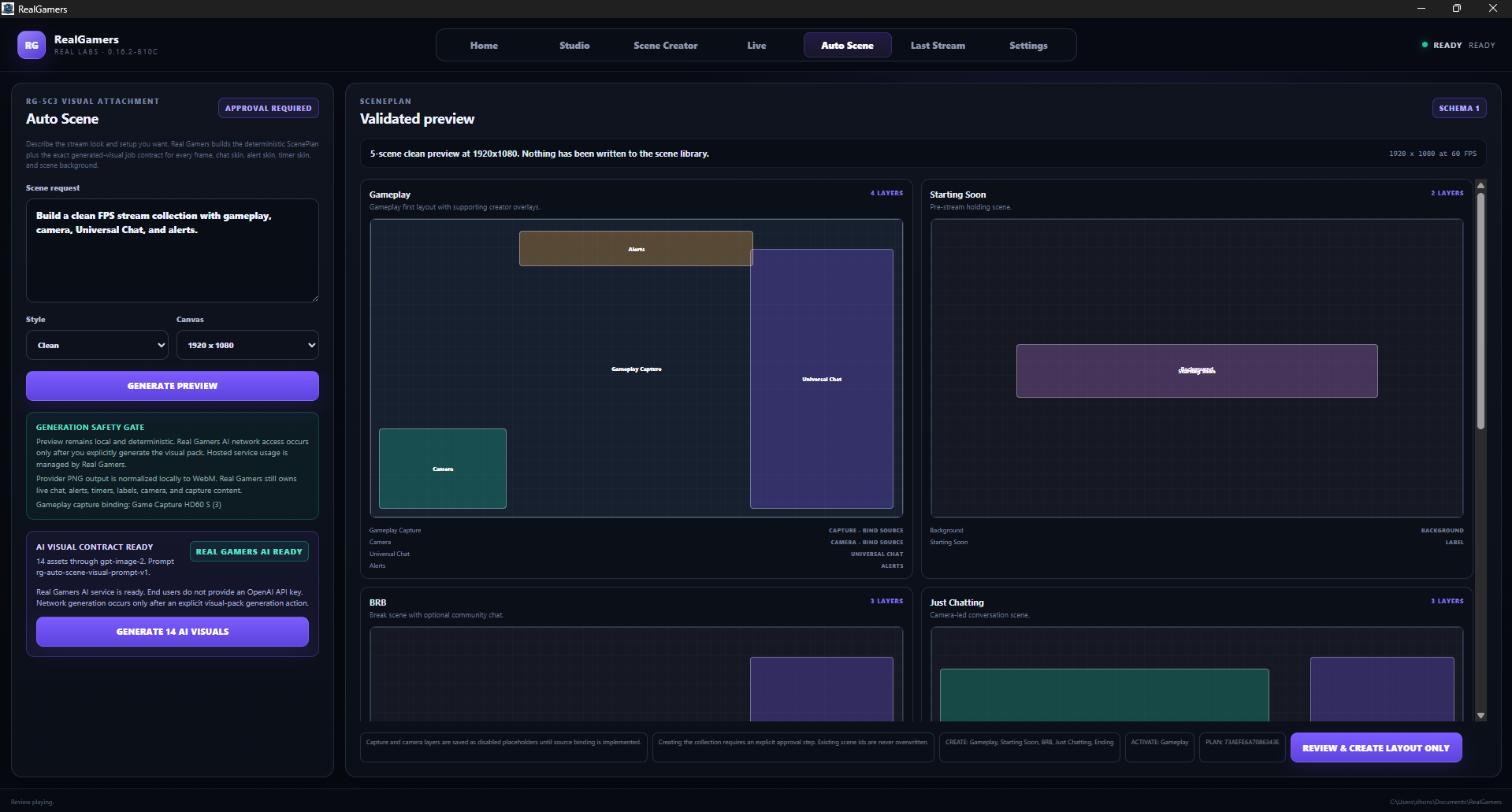

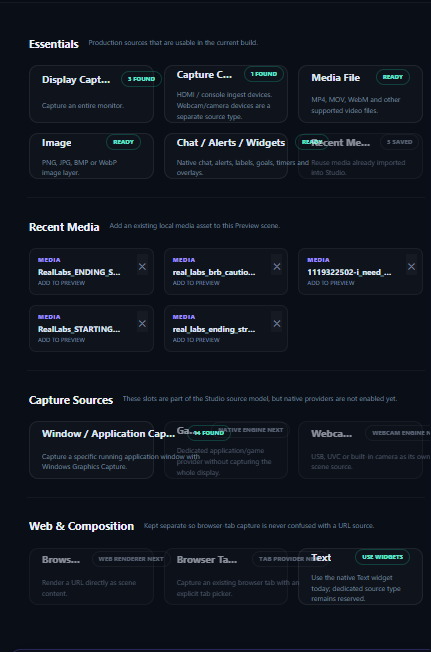

FIELD EVIDENCECapture UI Auto Scene Stability incidents

DOSSIER C2

REAL GAMERS STREAMING ARCHITECTURE

Cross-device capture and streaming architecture combining Windows-native media, Android hardware H.264 capture, FFmpeg decode, D3D11 GPU ingest, controlled pacing, audio, and live-production stability.

CROSS-DEVICE MEDIA PATH

CAPTUREacquire frame

→

PACEpresentation timing

→

RENDERD3D11

↔

AUDIOWASAPI

→

OUTPUTstream path

FRAME PACING

Capture frequency is not automatically presentation timing. Stable output requires controlled pacing and deliberate buffering behavior.

AUDIO MIXING

Audio has its own timing and buffering behavior. It must remain aligned with the video path while both are under live load.

LIVE STABILITY

A pipeline can be fast and still be unusable. Jitter, starvation, resource churn, and unstable pacing are production failures even when nothing crashes.

MOBILE HOT PATH

ANDROID SCREEN → MEDIAPROJECTION → HARDWARE H.264 → TRANSPORT → FFMPEG → BGRA → D3D11 → GPU MAILBOX → LUNA

ANDROID CAPTURE

Real gameplay is captured through MediaProjection and VirtualDisplay, then encoded on-device with the Qualcomm hardware H.264 encoder. The validated landscape path produces a 1280x590 H.264 stream at a 4 Mbps target.

TRANSPORT + RECOVERY

The mobile publisher uses bounded buffering, preserves SPS/PPS codec configuration, emits clean IDR startup sequences, reconnects when the receiver disappears, and resynchronizes after reconnects or queue pressure.

GPU INGEST

FFmpeg decodes the mobile H.264 stream into BGRA frames, which enter the existing Rust capture path, upload through D3D11, publish through the bounded GPU mailbox, and become a live source inside the LUNA compositor.

WHY THIS MATTERS

Stable live media now crosses device and process boundaries. Android capture, hardware encoding, transport recovery, decode, GPU upload, pacing, audio, and presentation all have to stay coherent before gameplay becomes a dependable live production source.

TRACE SYSTEM DEPENDENCIES →

SYS-04ML AUDIO

VoiceLab

CPU/GPU Inference · Audio Processing · Model Runtime

Voice cloning and generation workflows with in-house inference, CPU/GPU execution paths, audio processing, and production integration.

Input Audio

Preprocess

Model Load

Inference

Postprocess / Platform

INFERENCE PATH

Audio preparation, model lifecycle, execution path, and product integration are treated as separate concerns so CPU and GPU behavior can be reasoned about independently when diagnosing latency or memory issues.

PREPROCESS

Audio preparation is isolated from model execution so malformed input, resampling, normalization, and inference failures are distinguishable.

MODEL LIFECYCLE

Loading, warm state, memory pressure, and teardown are handled as runtime concerns instead of being hidden behind one inference call.

CPU / GPU

Separate execution paths make acceleration and fallback behavior observable instead of assuming the fastest device path always succeeds.

INTEGRATION

Inference output is treated as a production artifact that must move back through application state, storage, and creator workflows.

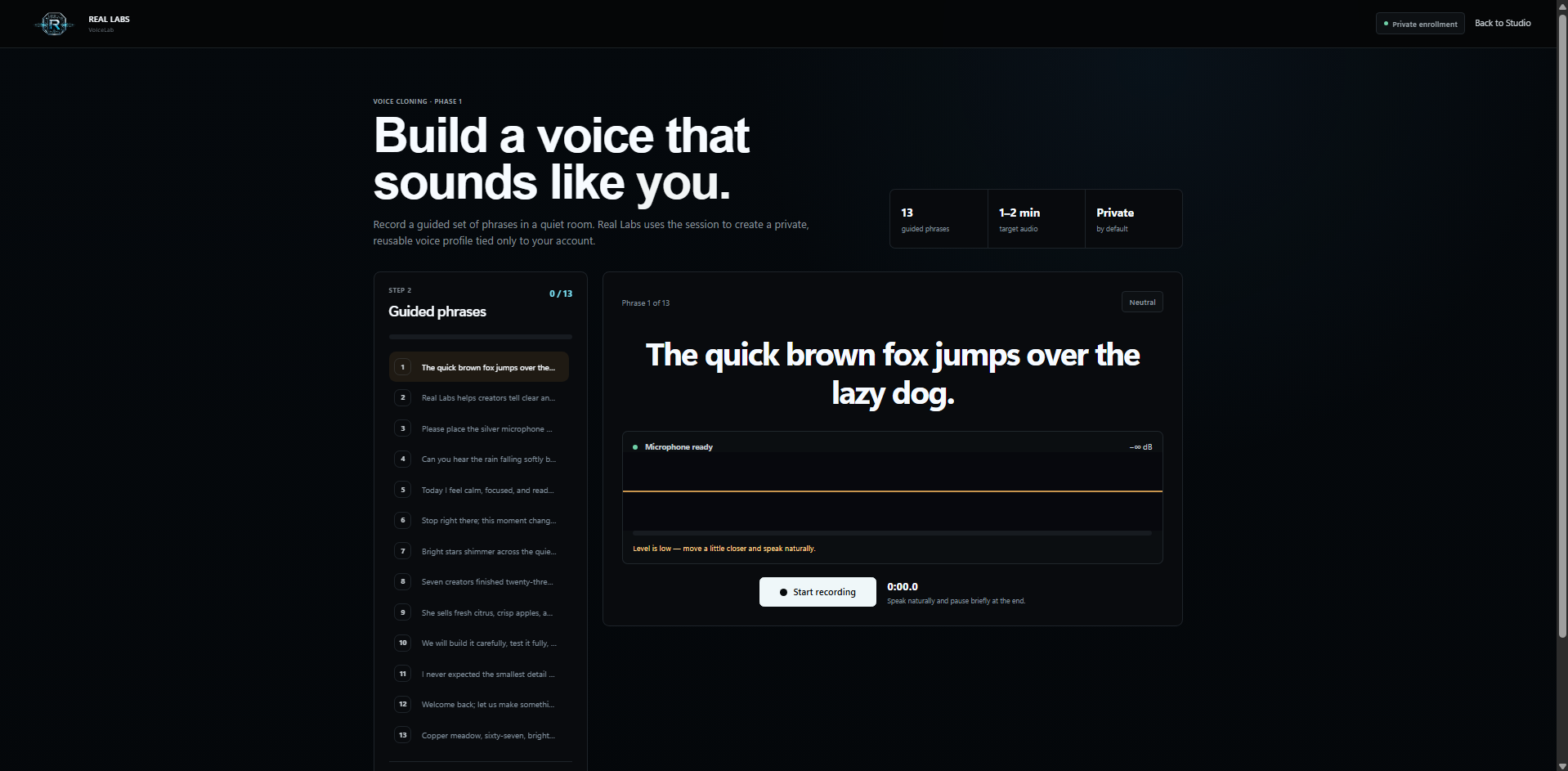

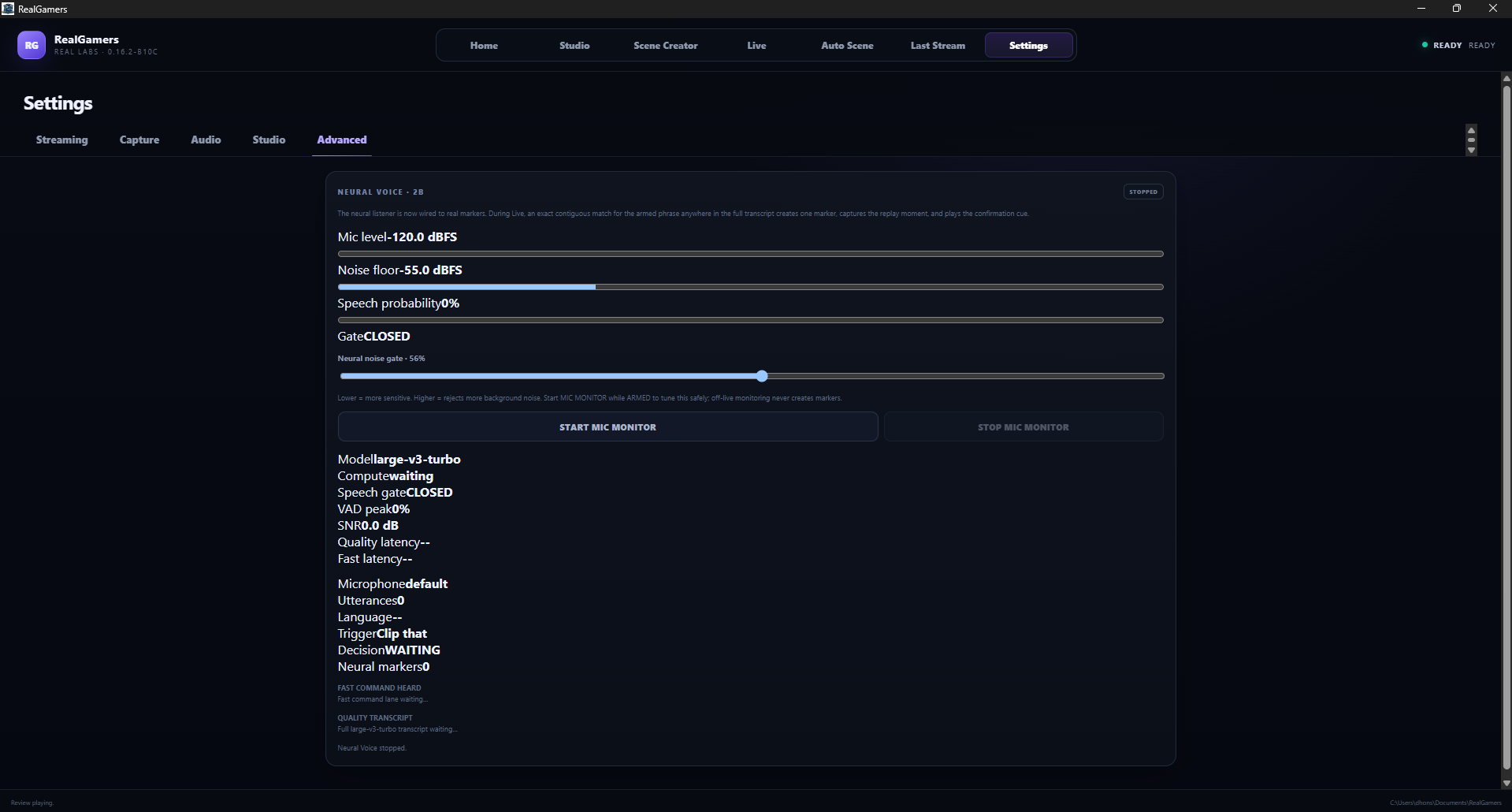

FIELD EVIDENCEVoice enrollment Neural command UI Inference incidents

DOSSIER D8

VOICELAB INFERENCE SYSTEM

Production ML-audio system with explicit preprocessing, model lifecycle, CPU/GPU execution paths, and platform integration.

ML AUDIO RUNTIME

AUDIO INPUT

CPU PATHfallback / portable inference

GPU PATHaccelerated inference

POSTPROCESS → PLATFORM ARTIFACT

PREPROCESSING

Resampling, normalization, and input preparation are separate from model execution so audio faults can be isolated from inference faults.

MODEL LIFECYCLE

Load time, warm state, memory pressure, execution device, and teardown are runtime concerns that need independent visibility.

PRODUCT INTEGRATION

Inference output becomes a platform artifact that must move through application state, storage, and creator workflow logic safely.

WHY THIS MATTERS

Inference becomes useful engineering only when model execution is observable, device behavior is controlled, and the result survives integration into the product workflow.

FOLLOW THE PRODUCTION BOUNDARY →

⚠ 02 // PUBLISH ENGINE // TRANSACTIONAL CONTENT PATH

DJANGO LIVE CMS // DRAFT → PUBLISH → VERIFY

Visual publishing system that separates private draft state from public delivery and verifies the final snapshot across database, filesystem, Nginx, and browser boundaries.

Built because editing a production portfolio through repeated Windows → SSH → Linux file surgery is a terrible content workflow.

01VISUAL STUDIOprivate editor

↓

02DRAFT STATEprivate DB state

↓

03PUBLISHtransaction + snapshot

↓

04ATOMIC WRITEtemporary → replace

↓

05CANONICAL HTMLsingle published snapshot

↓

06NGINXexact live response

ACTUAL PUBLISH FLOW // SANITIZED EXCERPT

with transaction.atomic():
    state = PortfolioPageState.objects.select_for_update().get(pk=1)

    state.published_version += 1
    state.published_html = state.draft_html
    state.published_at = timezone.now()
    state.save()

    write_published_file(state.published_html)

ATOMIC SNAPSHOT PRINCIPLE

temporary_file.write(snapshot)
fsync(temporary_file)
os.replace(temporary_path, published_path)

# readers see old or new
# never a half-written page

INTEGRITY CHECKDB SHA256 == published SHA256 == public HTTPS SHA256PASS

PUBLISH FORENSICS // VERIFIED DEBUG SEQUENCE

1. inspect PortfolioPageState.draft_html
2. inspect PortfolioPageState.published_html
3. hash canonical published/index.html
4. request public HTTPS response
5. hash returned body
6. inspect browser runtime hydration
7. compare presentation metadata with visible text

do not guess which layer failed
prove it

NGINX DELIVERY MODEL // SANITIZED

location = /developerportfolio/ {
    rewrite ^ /developerportfolio/index.html last;
}

location = /developerportfolio/index.html {
    alias /protected/published/index.html;
    add_header Cache-Control "no-cache, no-store, must-revalidate";
}

FORENSIC 01

DRAFT IS NOT LIVE

Private draft state can be mutated repeatedly without changing the public snapshot.

draft_html != published_html

FORENSIC 02

PUBLISH IS A STATE TRANSITION

Publish copies the committed draft into published state and writes the canonical snapshot.

transaction → published state → atomic file

FORENSIC 03

ATOMIC MEANS NO HALF PAGE

The new snapshot is prepared separately, then moved into place with an atomic replacement operation.

temp → fsync → os.replace()

FORENSIC 04

PUBLIC DELIVERY IS VERIFIED

Database state, canonical file, Nginx response, and browser runtime are checked as separate boundaries. The resulting incidents are indexed in the Bug Graveyard and distilled in the Fix Vault.

DB → FILE → HTTP → RUNTIME

FORENSIC 05

SYMLINK FALLBACK

The legacy static index was aligned to the canonical snapshot with a symlink so it could not drift independently.

static/index.html → canonical published/index.html

FORENSIC 06

SHA256 ENDS ARGUMENTS

When two files both claim to be live, hashes establish whether they are actually identical.

sha256(DB snapshot) == sha256(HTTPS body)

WHY THIS MATTERS

The publishing engine turns an editable visual document into a verifiable public artifact without exposing half-written output. The same forensic boundaries that ship content are also what made the hardest publishing bugs diagnosable.

OPEN PUBLISHING INCIDENTS → OPEN FIX VAULT →

⚠ 03 // PRODUCTION OPS // PRIVILEGED SYSTEM LAYER

UBUNTU SERVER ENGINEERING ZONE

Production operations layer covering service isolation, reverse proxy behavior, realtime processes, permissions, diagnostics, backups, and narrow-scope deployments.

Service isolation, Nginx routing, systemd, Gunicorn/Daphne, permissions, logging, backups, and production diagnosis.

SYSTEMD

Independent service units create hard operational boundaries. Restart only the service that changed.

GUNICORN / DAPHNE

HTTP and asynchronous application behavior are kept explicit so request failures and realtime failures do not collapse into one problem.

NGINX

Exact routes, reverse proxy boundaries, static delivery, and published snapshots are verified independently.

TLS / DNS

Public delivery is checked from the outside boundary, not assumed correct because localhost works.

OBSERVABILITY

journalctl, structured logs, HTTP verification, process inspection, and hash comparisons are used together.

PERMISSIONS

Protected runtime state stays protected. Diagnostics use the correct privilege instead of weakening filesystem security.

BACKUPS

Database, published snapshots, templates, and active assets are copied before risky deployment work.

DEPLOYMENT

Back up. Validate syntax. Apply narrowly. Restart the target service. Verify the exact public response.

PRODUCTION SERVICE BOUNDARIESISOLATION IS A FEATURE

01APPLICATION PROCESSGunicorn / Django request handlinghealth checked

02ASYNC / REALTIMEDaphne / realtime boundaryseparate failure surface

03QUEUE WORKERSCelery media executionlong-running jobs

04REVERSE PROXYNginx routing and static deliveryexact route checks

05SERVICE MANAGERsystemd lifecycle and logsrestart only target

06DATA / CACHEPostgreSQL + Redispersistent + ephemeral state

production-debug-session.log // sanitized

$ systemctl status portfolio.service
● portfolio.service - active (running)

$ curl -I https://example.dev/developerportfolio/
HTTP/2 200
cache-control: no-cache, no-store, must-revalidate

$ sha256sum published/index.html
65cbd830…  published/index.html

$ curl -s https://example.dev/developerportfolio/ | sha256sum
65cbd830…  -

result: public response == canonical published snapshot

WHY THIS MATTERS

Service boundaries turn production debugging into a finite search problem. When proxy, application, realtime, worker, data, and filesystem layers are isolated, failures can be proven instead of guessed.

SEE THE TERMINAL EVIDENCE →

⚡ 04 // PRODUCTION EVIDENCE // REAL SCREENS, REAL SYSTEMS

THE SCREENSHOTS ARE THE RECEIPTS.

Finished product surfaces, runtime control planes, production verification, secure workflows, and failure states captured during actual engineering work.

20 real captures integrated 0 generated mockups 4 engineering domains shown 1 completed external client build

REALVIDEOCREATOR // STUDIO

FULL-STACK CREATOR WORKFLOW

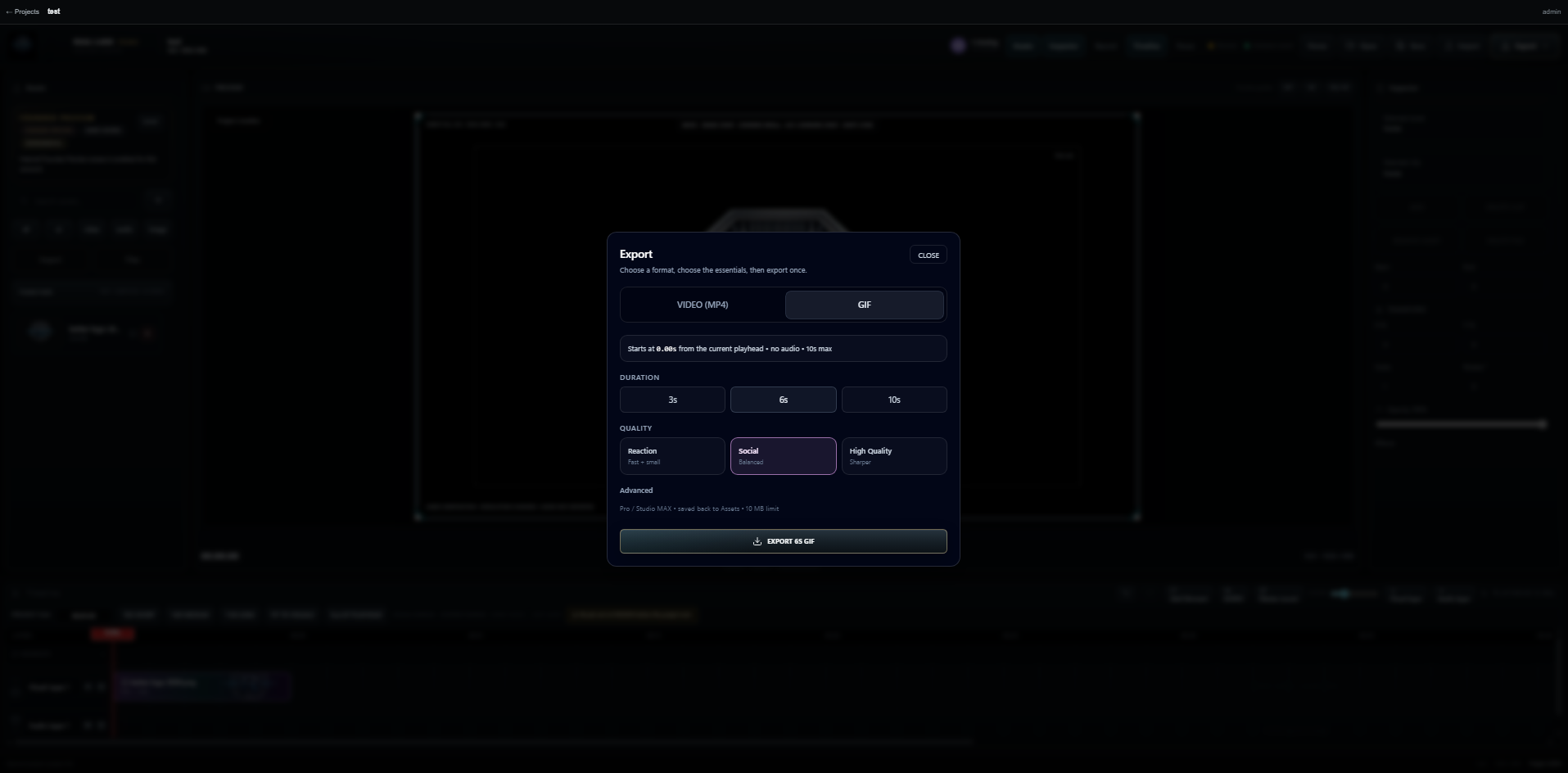

Timeline editing, visual composition, project state, export controls, and media delivery in a production creator interface.

OPEN SYSTEM DOSSIER ↑

WHY THIS MATTERS

This is not a demo editor shell. It shows the actual production surface where project state, layered media, interaction tooling, and export behavior meet.

REAL GAMERS + LUNA // NATIVE MEDIA

REAL-TIME CONTROL PLANE

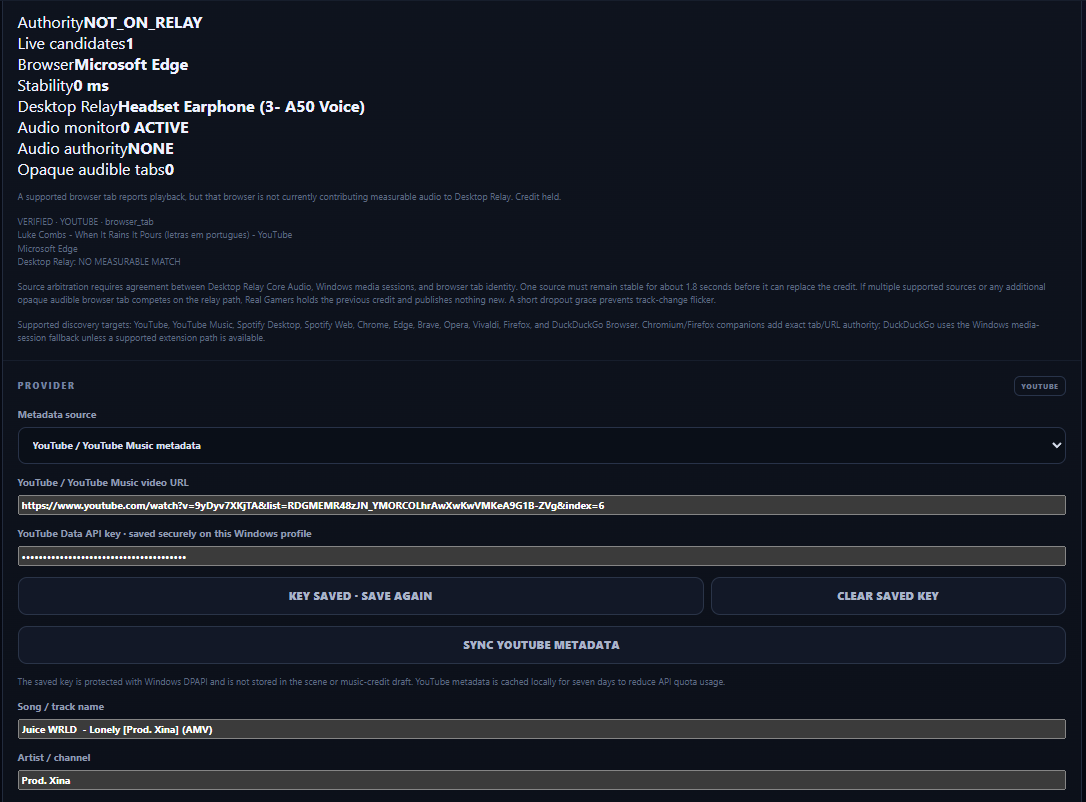

Program Output, GPU-backed runtime state, live capture, scene planning, neural commands, and metadata authority exposed as engineering controls.

OPEN LUNA DOSSIER ↑

WHY THIS MATTERS

The runtime is visible. Capture health, frame age, encoder state, GPU mailboxes, metadata authority, replay state, and speech processing are treated as first-class system signals.

VOICELAB // ML AUDIO

PRIVATE VOICE ENROLLMENT

Guided phrase capture, microphone readiness, recording state, and private voice-profile enrollment in a production-facing ML workflow.

OPEN VOICELAB DOSSIER ↑

SECURE OPERATIONS // BUSINESS SYSTEMS

DOCUMENT EXECUTION + PRODUCTION VERIFICATION

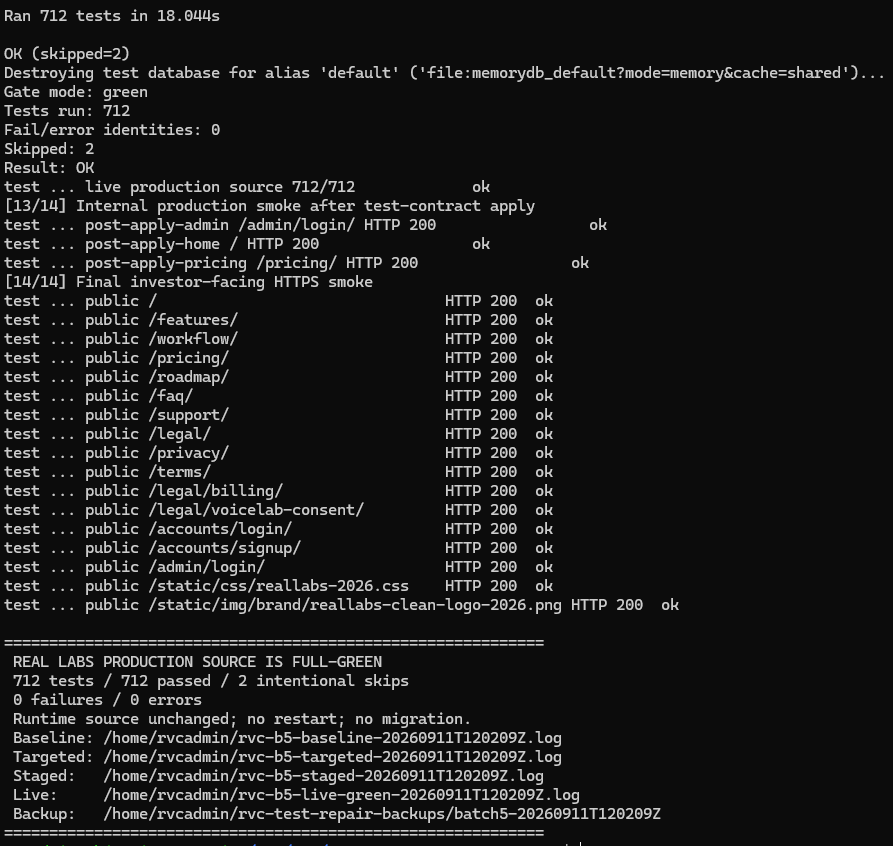

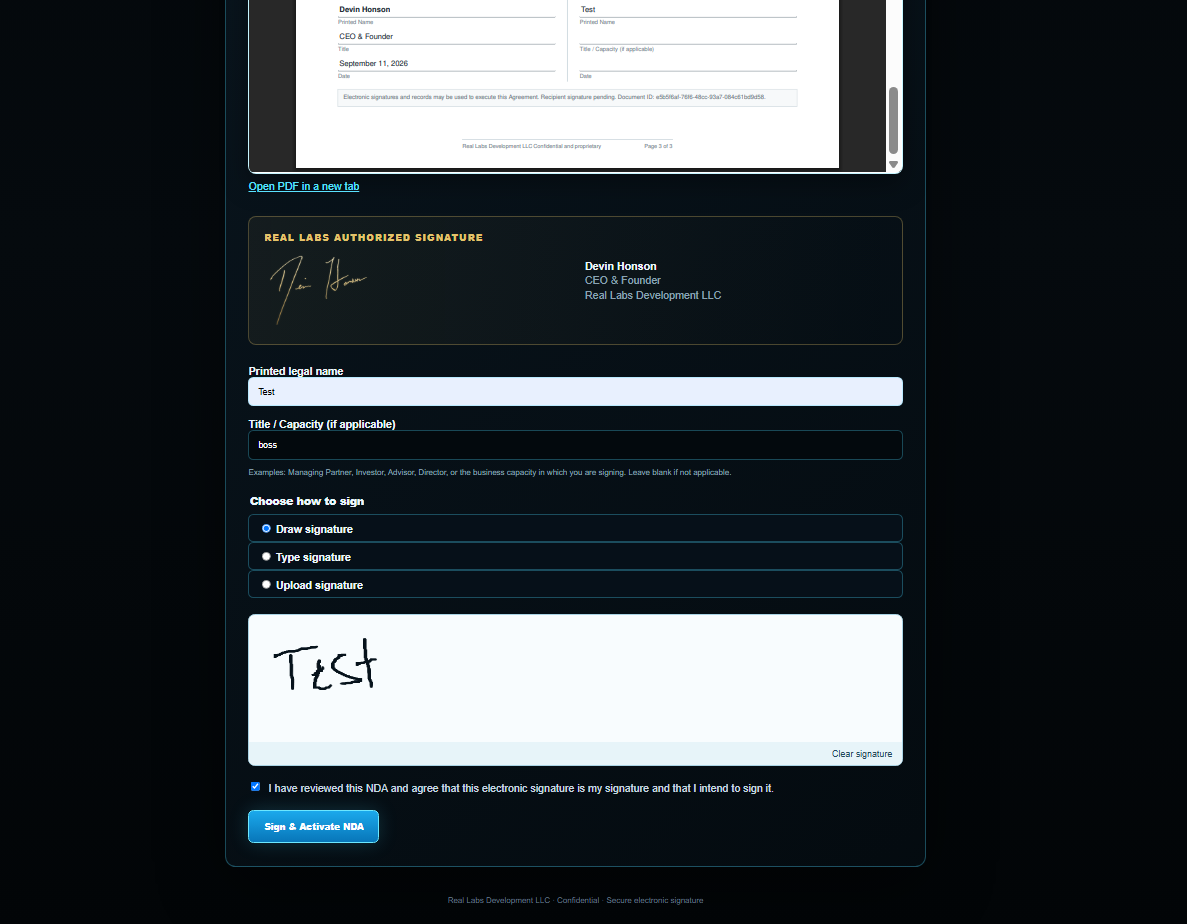

Secure business workflows and release verification sit beside the media systems because production engineering includes the operational edges too.

OPEN OPS DOSSIER ↑

◆ 05 // JOBS // COMPLETED CLIENT DELIVERY

SHIPPED FOR SOMEONE ELSE. BUILT END TO END.

Mags by Ash is completed client work for another company. It is shown here as delivered product engineering, not as a Real Labs-owned product.

COMPLETED CLIENT BUILD

MAGS BY ASH

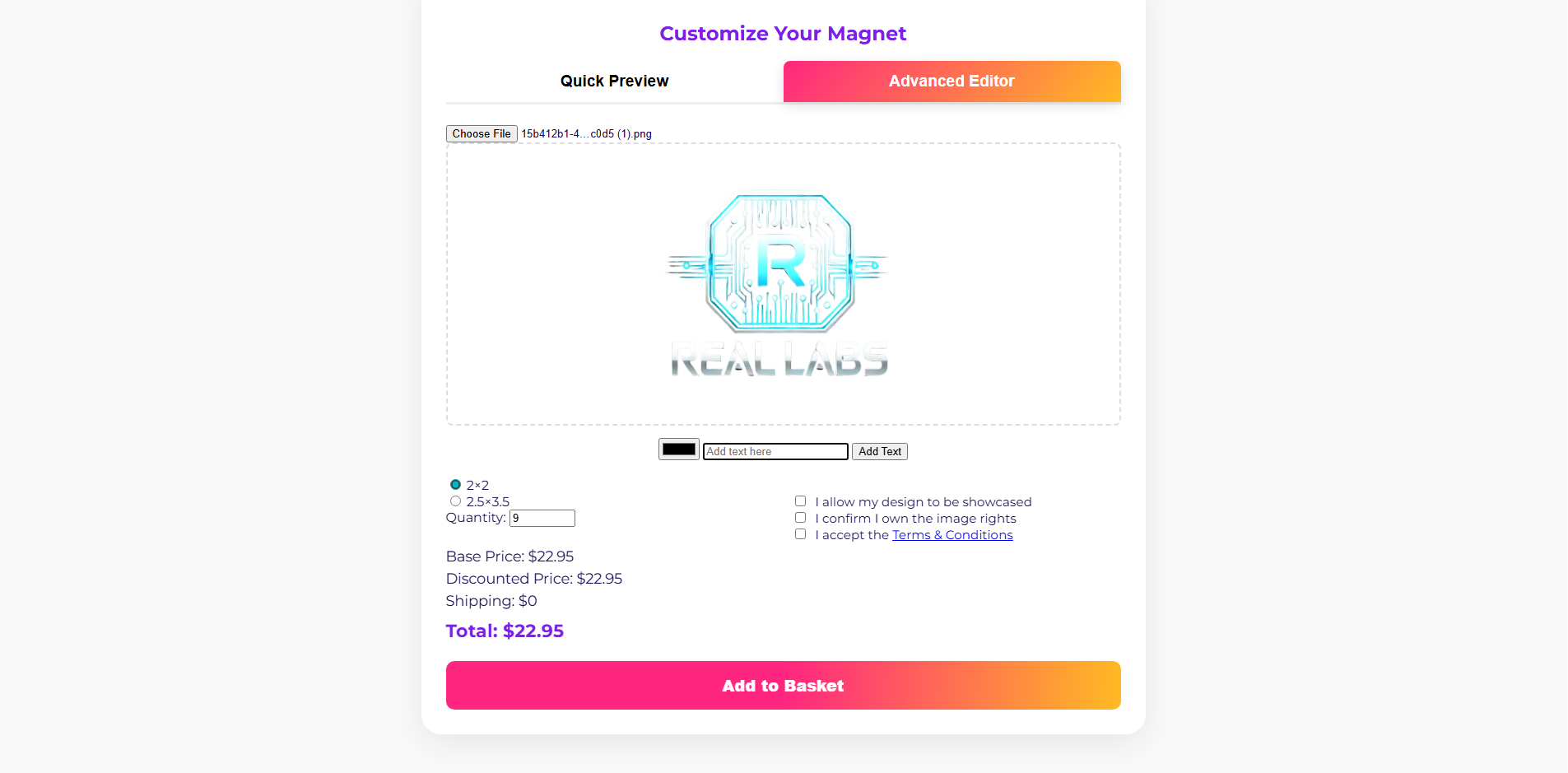

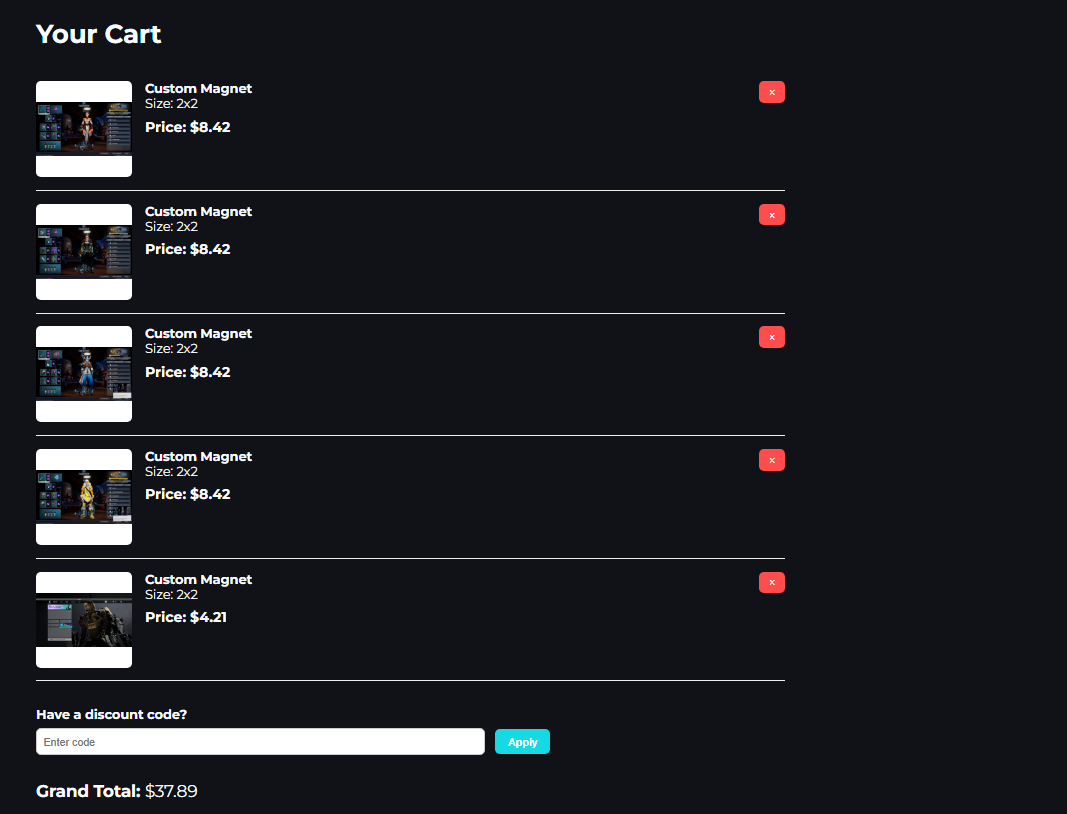

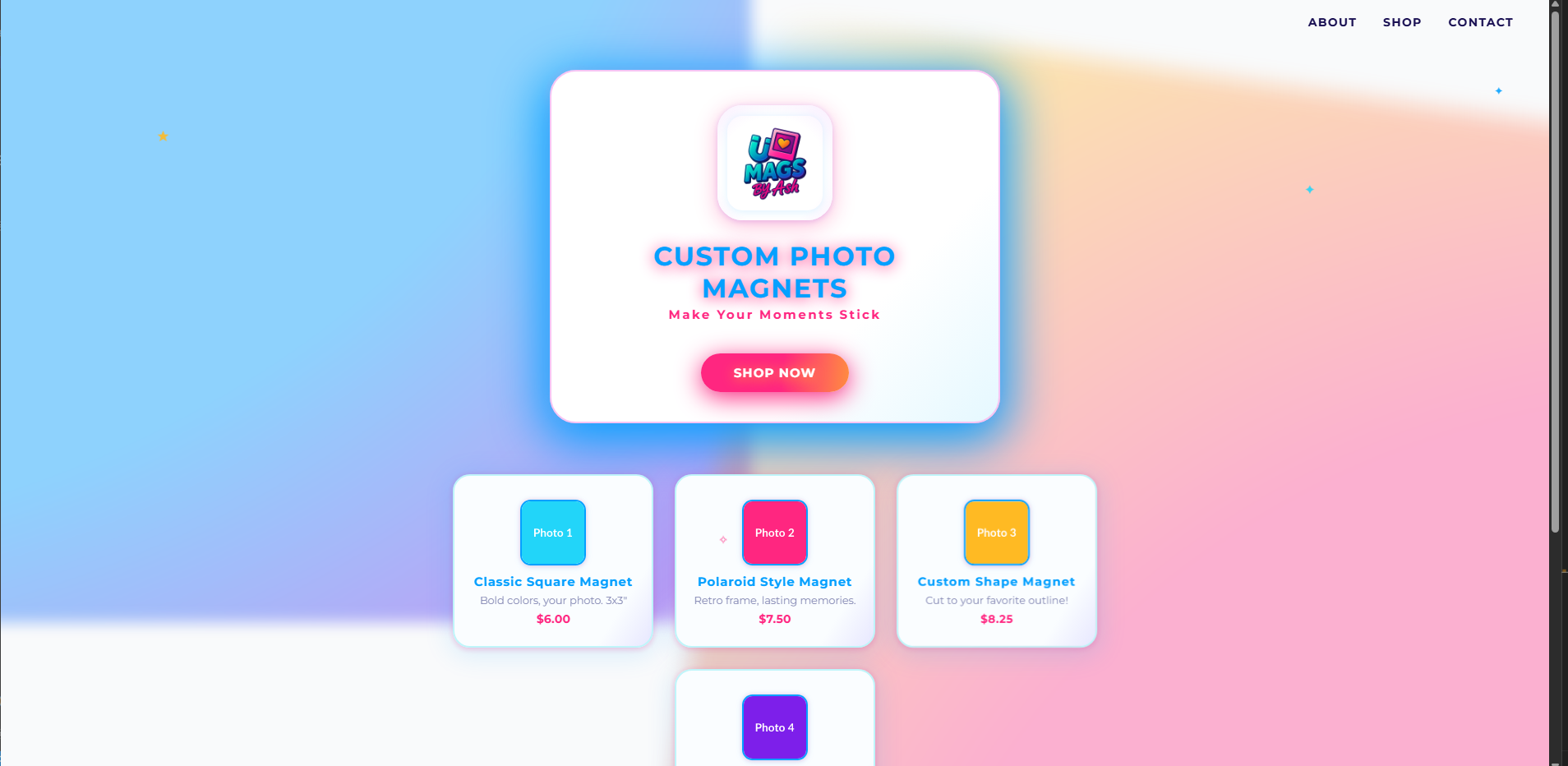

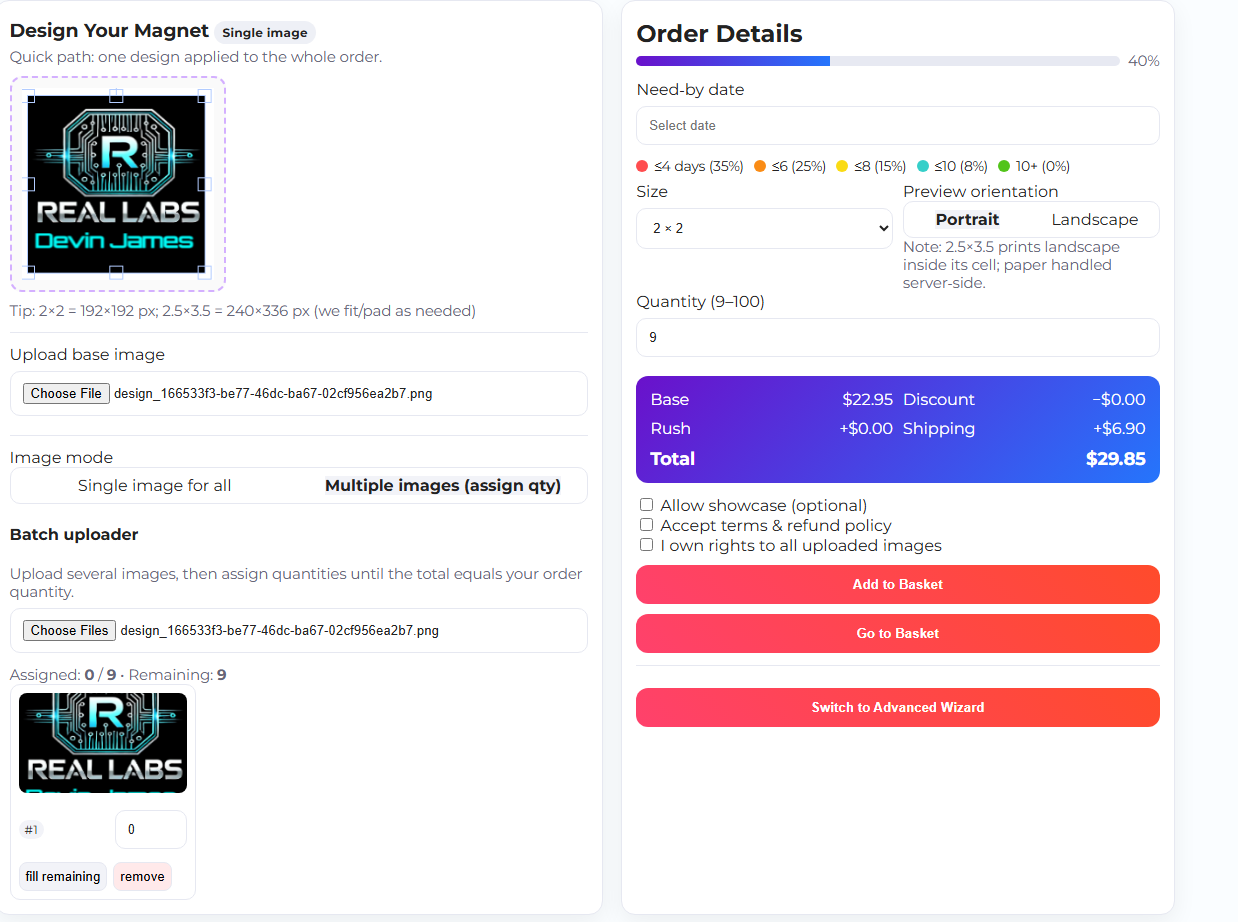

Custom photo-magnet storefront with authentication, product configuration, multi-image ordering, cart flow, responsive UI, and customer-facing commerce screens.

DELIVERED EXTERNAL CLIENT

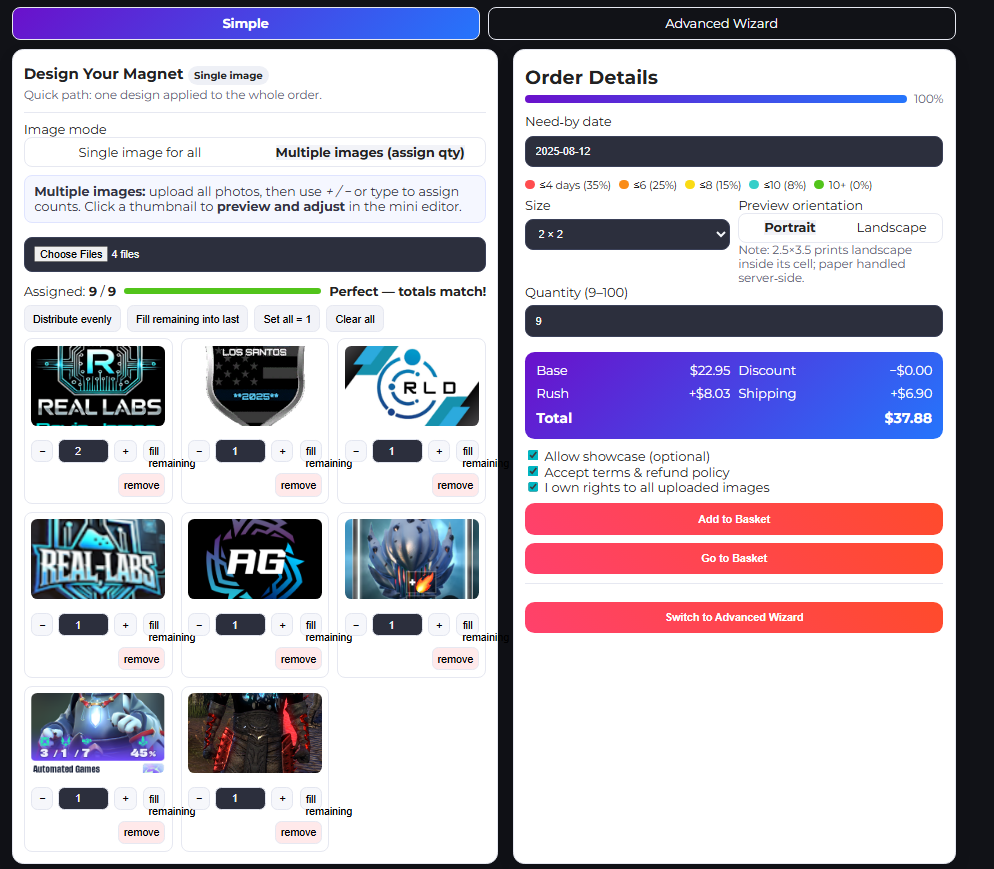

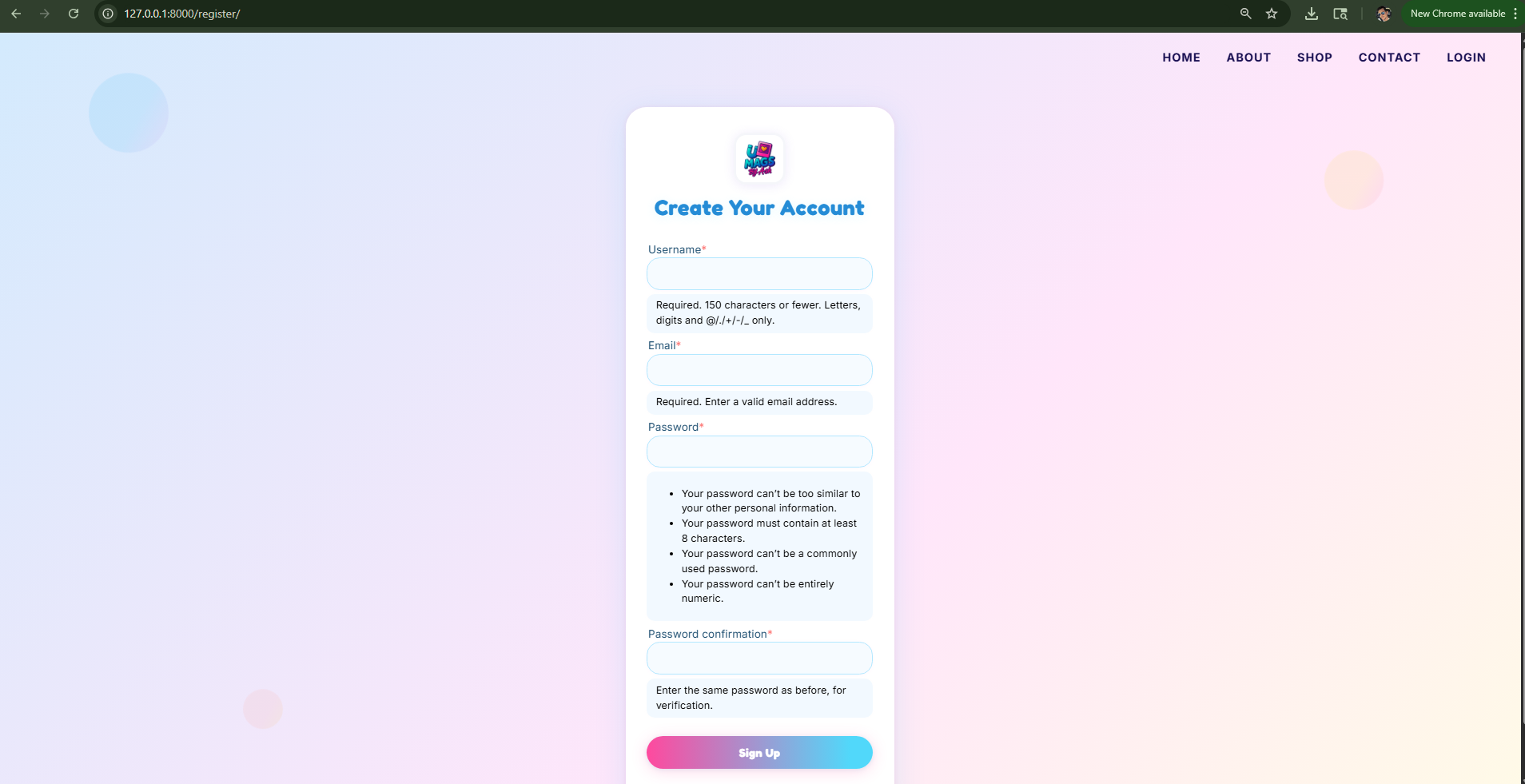

STOREFRONT AUTH / REGISTRATION CUSTOM PRODUCT BUILDER MULTI-IMAGE ALLOCATION CART / ORDER FLOW RESPONSIVE UI

WHY THIS MATTERS

This is proof of delivery outside the Real Labs product stack: a complete customer-facing commerce experience built for a separate company and carried through real product workflows.

☠ 06 // TERMINAL CHAOS GALLERY // SANITIZED PRODUCTION CAPTURES

THE PART PEOPLE USUALLY DELETE BEFORE THE DEMO.

Sanitized terminal evidence from the failure path itself: mismatched hashes, stale assets, routing faults, permission boundaries, and false hypotheses.

Incident reconstructions and real captured evidence are presented together. The screenshots below are from actual product, runtime, deployment, and failure-state work.

CAPTURE 01THE HASHES DID NOT MATCH

$ stat published/index.html
Modified: 2026-09-13 21:16:03

$ sha256sum published/index.html
65cbd8303cba8d38...  published/index.html

$ sha256sum public/index.html
7935436aac12bf95...  public/index.html

[DIAGNOSIS]
two files claimed to be "live"
only one was canonical

FIXED // SINGLE SOURCE OF TRUTH

CAPTURE 02917 WENT IN. 89 CAME BACK.

DRAFT
contains >917<: True
contains >89<: False

PUBLISHED
contains >917<: True
contains >89<: False

published HTML:
data-count="89"
visible text: 917

jobs.json:
"testsPassing": 89

ROOT CAUSE // RUNTIME HYDRATION + STALE METADATA

CAPTURE 03THE PATCH ABORTED ITSELF

Expected 2 save/publish cleanClone calls; found 3.

[STATE]
installer stopped
active Studio unchanged
production remained intact

[NEXT]
inspect exact call sites
rebuild targeted patch
verify before restart

FAIL CLOSED // NO BLIND PRODUCTION EDIT

CAPTURE 04PERMISSION DENIED WAS THE CORRECT ANSWER

$ grep published/index.html
Permission denied

[WRONG FIX]
chmod the protected directory open

[ACTUAL FIX]
sudo grep ...
keep runtime permissions intact
use privilege for diagnostics

SECURITY PRESERVED

CAPTURE 05PUBLIC DELIVERY FORENSICS

$ curl -I /developerportfolio/
HTTP/2 200
cache-control: no-cache, no-store, must-revalidate

$ sha256sum canonical-published.html
65cbd8303cba8d38...

$ curl -s https://public.example/developerportfolio/ | sha256sum
65cbd8303cba8d38...

[RESULT]
database → canonical snapshot → HTTPS body
delivery boundary verified

PASS // BYTE-LEVEL PUBLIC VERIFICATION

CAPTURE 06NGINX SAID 500 BEFORE DJANGO EVEN GOT A VOTE

GET /developerportfolio/
→ nginx route
→ exact file alias mismatch
→ 500 Internal Server Error

[DIRECTION]
do not debug Django yet

[FIX]
directory URI
→ internal rewrite
→ exact index URI
→ canonical file alias

LAYER ISOLATED // ROUTE FIXED

CAPTURE 07THE BROWSER WAS RUNNING YESTERDAY'S STUDIO

HTML: new
static JS: old cached asset
state request: missing
builder controls: absent

[FIX]
studio-v6.1.js
→ versioned asset
→ collectstatic
→ HTTPS verification

CACHE BUSTED // NEW RUNTIME CONFIRMED

CAPTURE 08THE FORM LOOKED REAL. IT WAS A MAILTO.

submit event
→ preventDefault()
→ compose mailto:
→ no server write
→ no durable inbox

[FIX]
POST /api/hiring/
validate
persist
notify best-effort

DB FIRST // EMAIL SECOND

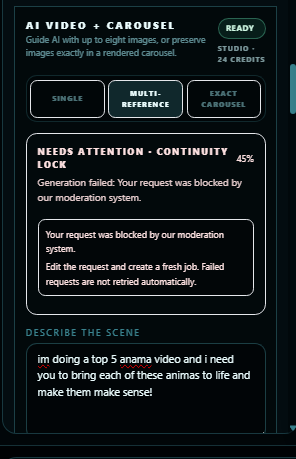

RealVideoCreator AI continuity lock moderation failure — REAL CAPTURE 09AI CONTINUITY LOCK // MODERATION FAILURE

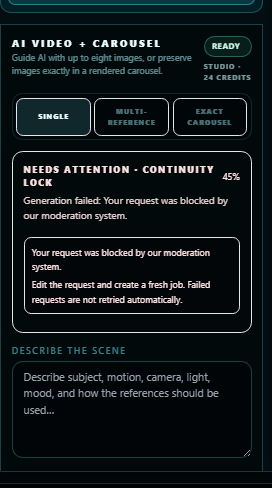

AI generation moderation block — REAL CAPTURE 10MODERATION BLOCK // CLEAN FAILURE SURFACE

Reference image moderation failure — REAL CAPTURE 11REFERENCE IMAGE BLOCK // PARTIAL PIPELINE FAILURE

REAL LABS ENGINEERING INCIDENT ARCHIVE // V7.6

DOCUMENTED ENGINEERING INCIDENTS FROM BUILDING REAL LABS SYSTEMS.

… DOCUMENTED ENGINEERING INCIDENTS

PRODUCTION ENGINEERING RECORD

These records document real failures I encountered while building, shipping, and operating Real Labs systems. Each entry captures what happened, how I investigated it, what caused it, how I fixed or mitigated it, how I verified the result, and what I changed to prevent it from happening again. Unresolved issues remain clearly marked, and sensitive production details are redacted for public viewing.

SEARCH THE INCIDENT ARCHIVE SYSTEM STATUS SUBSYSTEM

LOADING INCIDENT LIBRARY... PAGE 1

⚠ 08 // RECOVERY KNOWLEDGE // FIX VAULT

THE FIX VAULT

Reusable engineering lessons extracted from the incidents so the same class of failure is easier to recognize the next time.

The useful part of a bug is the reusable reasoning it leaves behind.

FIX-001

Cache-bust deployable UI assets

Version the filename when browser execution must change. Verify the exact asset over HTTPS, not only the source tree.

studio-v6.1.js → studio-v6.5.1.js

FIX-002

Make route semantics explicit

Directory URI and exact file delivery are different Nginx problems. Rewrite first, then alias the exact published file.

/portfolio/ → /portfolio/index.html

FIX-003

One source of truth

A publishing system cannot safely have two independently writable “live” files. Canonicalize, then verify every boundary with hashes.

DB == snapshot == HTTPS

FIX-004

Fail closed when patch assumptions break

An installer should stop on an unknown source shape instead of “best effort” editing production code.

unknown → abort → inspect → repatch

FIX-005

Interrogate each boundary

Editor, request payload, DB, filesystem snapshot, Nginx response, and browser runtime are separate layers. Test each one.

UI → payload → DB → file → HTTP → runtime

FIX-006

Never hydrate over an authoritative snapshot

If the visual CMS owns published content, legacy client-side JSON must not silently replace that content after load.

published HTML > stale jobs.json

FIX-007

Synchronize presentation and behavior metadata

If animation logic reads data-count, editing only visible text is incomplete. Update both before serialization.

textContent === data-count

FIX-008

Persist first, notify second

Hiring leads belong in durable application storage. Email is a notification channel, not the primary database.

POST → validate → save → notify

HOW TO FIX IT // COMPLETE INDEX

THE REPAIR PATH FOR EVERY INCIDENT.

… FIX / NEXT-ACTION RECORDS

Fixed incidents show the documented repair. Open incidents show the required fix, next action, or re-verification step preserved by the source log. No open item is presented as completed.

LOADING FIX INDEX...

⚠ 09 // DEPENDENCY MAZE // YOU ARE HERE SOMEWHERE

FOLLOW THE ARROWS. THEY DO NOT ALL GO FORWARD.

A deliberately compressed view of how state, timing, media, runtime health, and deployment logic cross system boundaries.

INPUT→ STATE↘ QUEUE→ MEDIA↓

CLOCK↔ AUDIO↔ FRAME→ GPU

ENCODE↑ BACKPRESSURE↘ PROGRESS→ CLIENT

DRAFT→ TX LOCK→ SNAPSHOT↔ NGINX

STATE IS NOT THE SAME AS PRESENTATION. PRESENTATION IS NOT THE SAME AS RUNTIME. RUNTIME IS NOT THE SAME AS DELIVERY.

END OF PUBLIC SYSTEMS FILE

YOU MADE IT THROUGH THE FACILITY.

What you just saw is the working record: shipped interfaces, production systems, real failures, measured repairs, client delivery, and the operating evidence behind them.

STATUS // SYSTEMS FILE COMPLETE REAL SYSTEMS. REAL INCIDENTS. REAL SHIPPED WORK.

RETURN TO PORTFOLIO REBOOT ZONE ↑

LEVEL 7 ACCESS ENGINEERS ONLY. ENTER IF YOU DARE.

THE STACK, WITHOUT THE MARKETING LAYER

RealVideoCreator

Interactive state stays separate from media execution.

72ms became 4.82ms after the expensive path was measured instead of guessed.

Latency comparison. Exact values only.

Queue state and user-visible progress are different problems.

Entitlements are application state, not a button state.

Internal communications became a full application subsystem.

LUNA Engine

Independent clocks are how real-time pipelines slowly tear themselves apart.

The target is not “looks synchronized.” The target is measurable drift.

Documented synchronization threshold, not a fabricated sampled trace.

Resource lifetime is part of correctness.

A real-time engine needs to know when it is unhealthy before the user does.

The webcam path now has measured camera-to-GPU timing instead of a blind decode boundary.

Real Gamers

VoiceLab

DJANGO LIVE CMS // DRAFT → PUBLISH → VERIFY

DRAFT IS NOT LIVE

PUBLISH IS A STATE TRANSITION

ATOMIC MEANS NO HALF PAGE

PUBLIC DELIVERY IS VERIFIED

SYMLINK FALLBACK

SHA256 ENDS ARGUMENTS

UBUNTU SERVER ENGINEERING ZONE

THE SCREENSHOTS ARE THE RECEIPTS.

SHIPPED FOR SOMEONE ELSE. BUILT END TO END.

THE PART PEOPLE USUALLY DELETE BEFORE THE DEMO.

THE FIX VAULT

Cache-bust deployable UI assets

Make route semantics explicit

One source of truth

Fail closed when patch assumptions break

Interrogate each boundary

Never hydrate over an authoritative snapshot

Synchronize presentation and behavior metadata

Persist first, notify second

FOLLOW THE ARROWS. THEY DO NOT ALL GO FORWARD.

YOU MADE IT THROUGH THE FACILITY.

LEVEL 7 ACCESS ENGINEERS ONLY.
ENTER IF YOU DARE.
